How to Register an IP Phone?

Introduction

Overview

To make and receive calls, the phone must be registered with a SIP account.

Applicable Models

Supported products: all phone models.
Supported firmware: all firmware versions for the supported models.

Target Audience

This guide is intended for users who need to register a SIP account on the phone.

Prerequisites

① One BX4U phone connected to a switch and able to obtain an IP address automatically.
② One configuration PC connected to the same switch, with network communication between the PC and the phone confirmed.

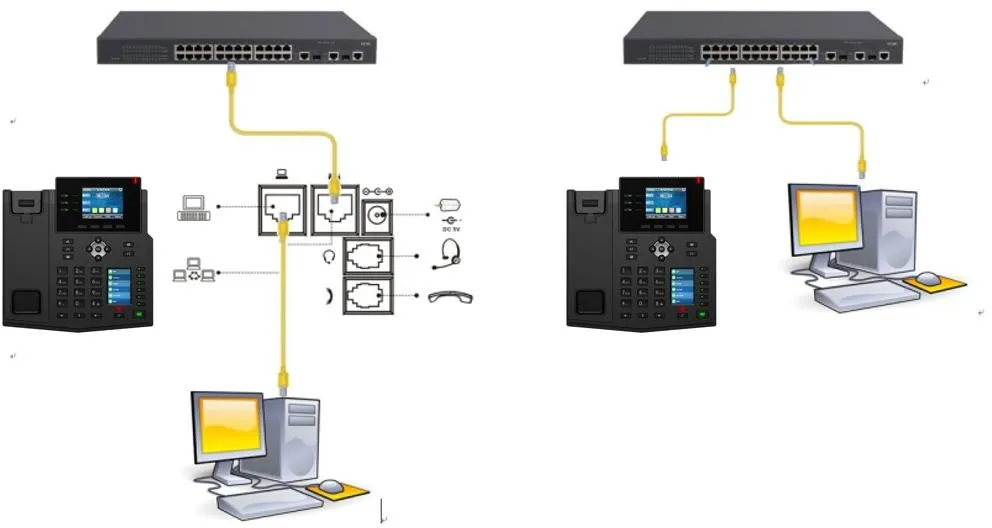

Phone and PC Connection Diagram

Phone and PC connection diagram

Procedure

Register from the Phone Screen

1. On the LCD screen, go to Menu -- Advanced Settings (default password: 123) -- Account -- SIP1 -- Basic Settings. Then enter the server address, server port, SIP username, authentication username, authentication password, and display name, as shown below in Figures 1 to 7.

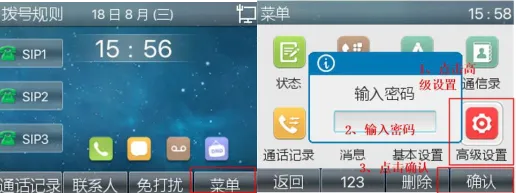

Phone advanced settings menu

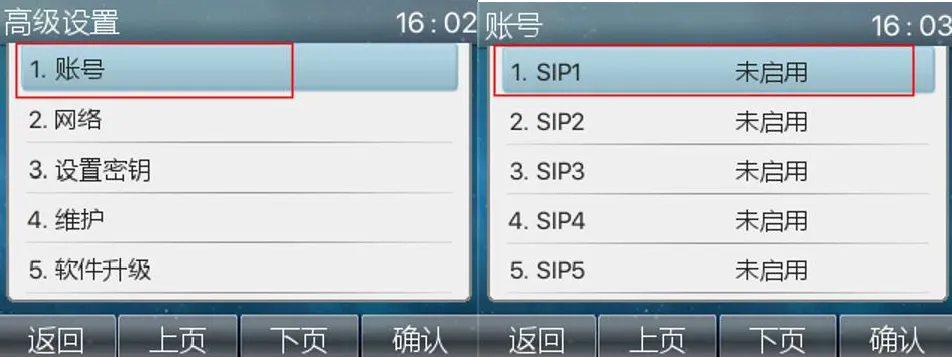

Enabling SIP1 on the phone

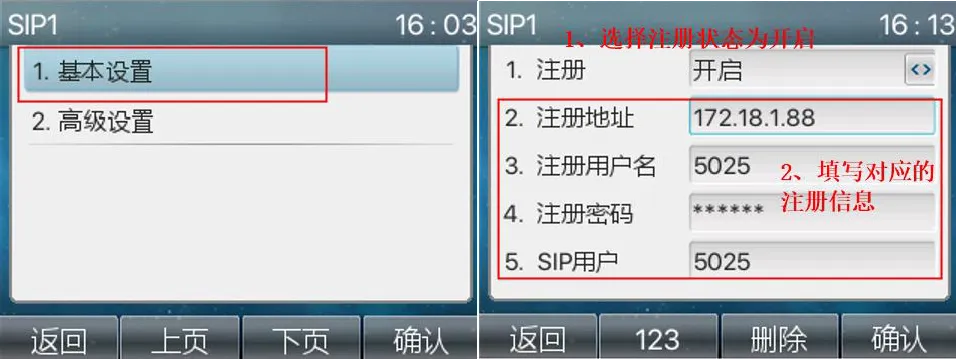

SIP1 settings on the phone

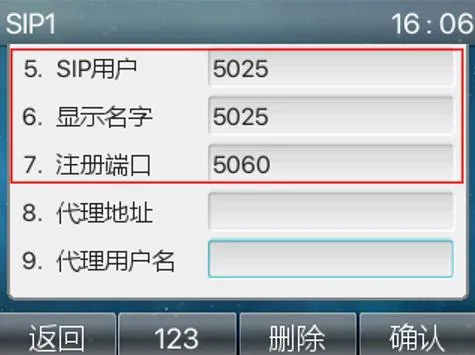

Configuring SIP1 account information

2. Check the registration status. Go to Menu -- Advanced Settings (default password: 123) -- Account, then confirm that the line status shows as registered.

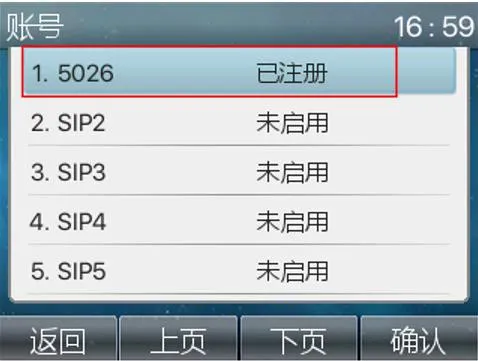

Phone registered successfully

Register from the Phone Web Interface

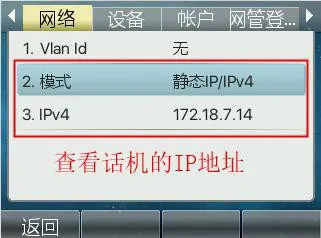

1. Check the phone IP address. On the phone LCD screen, go to MenuStatus to view the current IP address.

Checking the phone IP address

2. Log in to the phone web interface. On the PC, open a browser and enter the phone IP address in the address bar.

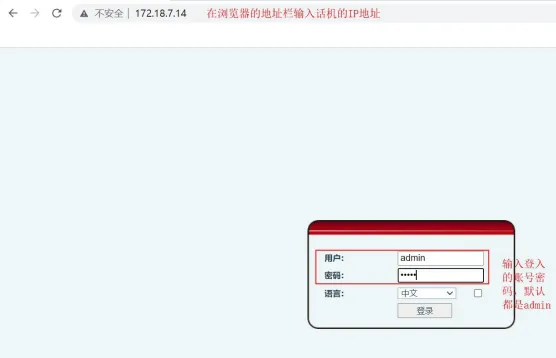

Opening the phone web interface by IP address

3. In the web interface, go to Line -- SIP -- Basic Settings. Enter the SIP account information, password, port, server address, and other required details. Enable the line and click submit, as shown below.

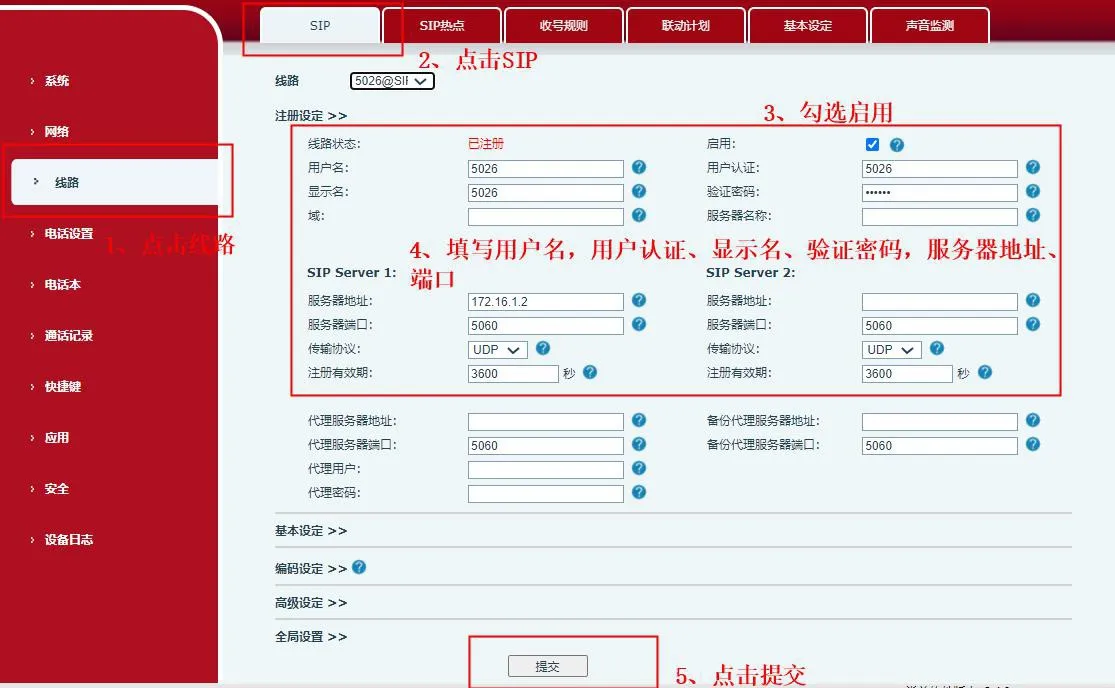

Phone SIP settings in the web interface

4. Check the registration status. On the Line page, verify that the line status shows as registered. Once the line is registered successfully, the phone is ready to make and receive calls.

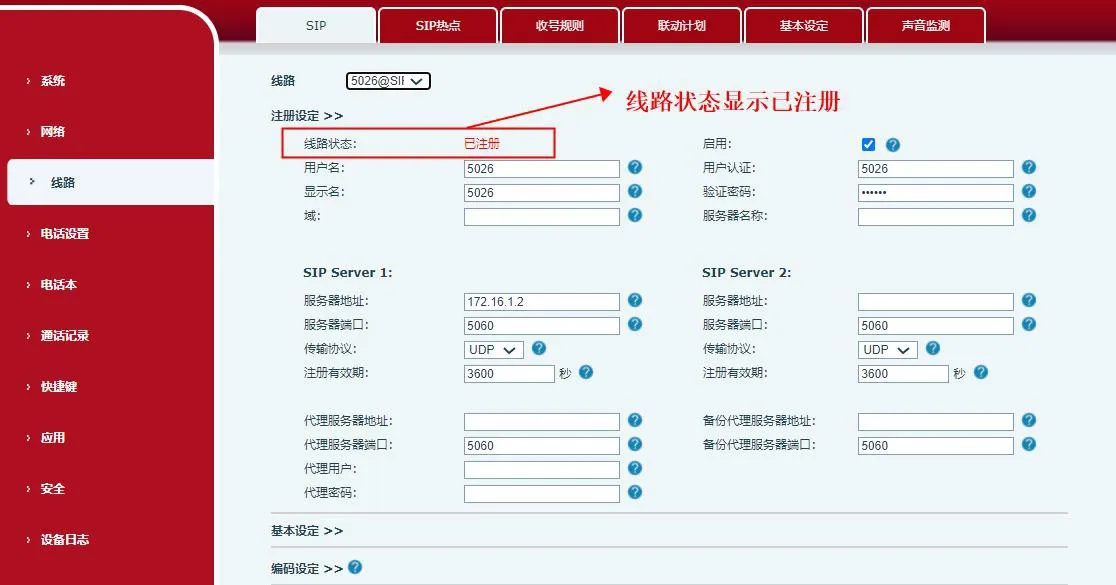

Successful phone registration status
